SUPERMICRO CSE-113MTQ-600CB

1. 1U Rackmount Chassis, supports maximum motherboard sizes: 13.68″ x 10.5″
2. 8 x 2.5″ hot-swap SAS/SATA drive bay SAS or enterprise SATA HDD only recommended
3. 8-port 1U TQ (W/ AMI 9072) backplane, support up to 8x 2.5-inch SAS/SATA HDD/SSD
4. 1U 600W platinum efficiency multiple output power supply w/PMBus
5. 1 full height expansion slot(s)
6. 4 x 40x56mm counter-rotation PWM fan(s) Optional 2 x fan for PCI card cooling

SUPERMICRO MBD-X10DRD-ITP

1. Dual socket E5-2600 v4/v3 TDP 145W
2. RDIMM: 4GB, 8GB, 16GB, 32GB, 64GB LRDIMM: 32GB, 64GB 3DS LRDIMM: 128GB Up to 1TB 3DS ECC LRDIMM, in 8 DIMM 2400/2133/1866/1600MHz ECC DDR4
3. Dual LAN w/ SFP+ Single LAN with VM Device Queues reduce I/O overhead Single LAN with 10Gbase-T Single LAN (dedicated IPMI)
4. 10 SATA3 (6Gbps)
5. 7 USB
6. RAID 0, 1, 5, 10
7. VGA PORT
8. 4 PCI-E 3.0 x8

Intel Xeon Processor E5-2620 v3

1. Processor Number : E5-2620V3
2. Lithography : 22 nm
3. Total Cores : 6
4. Total Threads : 12
5. Max Turbo Frequency : 3.20 GHz
6. Processor Base Frequency : 2.40 GHz
7. Cache : 15 MB Intel Smart Cache
8. TDP : 85 W
9. Max Memory Size (dependent on memory type) : 768 GB

SUPERMICRO HEATSINK 1U PASSIVE SNK-0057P

1. 1U Passive High Performance CPU Heat Sink
2. Intel Xeon Processor E5-2600 Series
3. Socket LGA2011 Square ILM

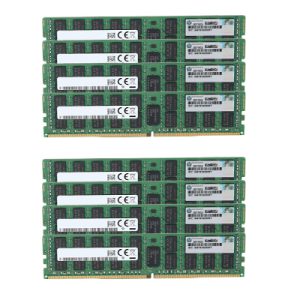

RAM HPE 16GB 2Rx4 PC4-2133-R

1. Type : DRAM
2. Technology : DDR4 SDRAM
3. Data Integrity Check : ECC
4. Form Factor : DIMM 288-pin
5. Storage Capacity : 16 GB
6. Upgrade Type : System specific
7. Memory Speed : 2133 MHz
8. Memory Specification Compliance : PC4-17000
9. Registered or Buffered : Registered
10. RAM Features : Dual rank
11. Chips Organization : X4
12. Latency Timings : 15-15-15
